Door Hinge Adjustment Instructions
Before Making Any Adjustments To The Hinges
Be sure to anchor the top hinge to the wall stud with a 3” screw. See door installation instructions for more information.
For Horizontal Adjustments
Examine the reveal (space between the door panel and frame) around the perimeter of the door panel. Use the Horizontal adjustment to correct clearance issues between the sides of the panel and the frame.

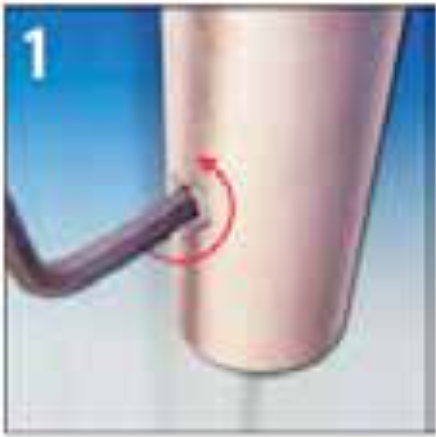

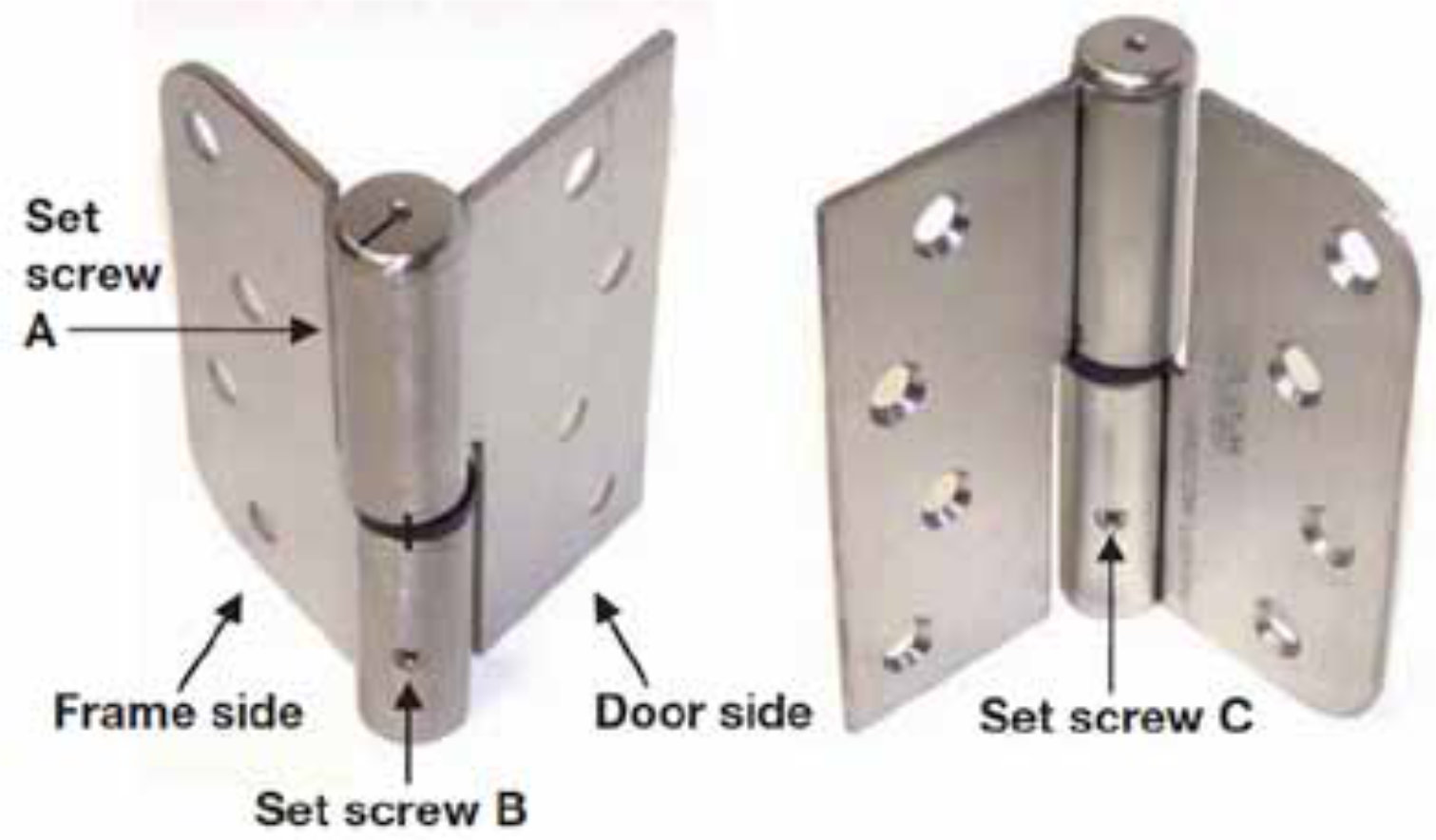

Loosen set screws B & C of the bottom knuckle with a 2.5 mm Allen Key.

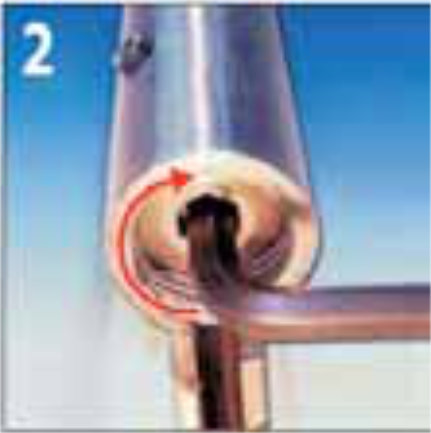

Adjust at the bottom with a 4 mm Allen Key through the bottom screw.

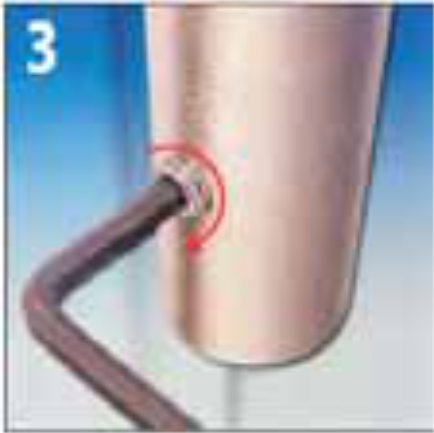

Tighten both set screws with a 2.5 mm Allen Key.
For Vertical Adjustments

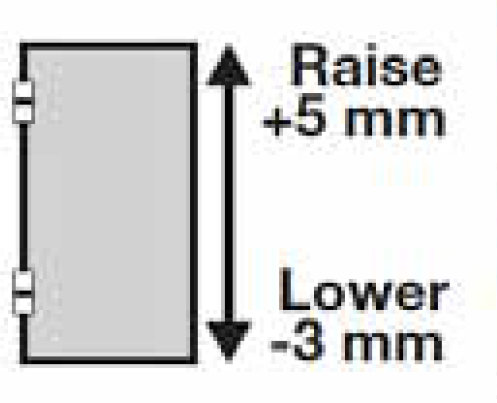

Use the Vertical adjustment to correct positioning issues where the door panel is too low or too high. Select one hinge to start with, position the panel as needed, and then adjust the other hinges to match.

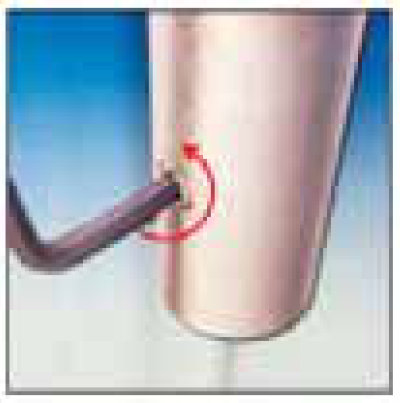

Loosen set screws B & C of the bottom Knuckle with a 2.5 mm Allen Key.
Adjust up & down with a 5 mm Allen Key. Clockwise = up
Counter Clockwise = down

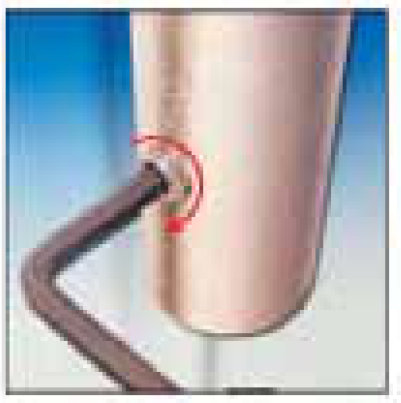

Tighten both set screws with a 2.5 mm Allen Key.
