Vinyl Double Hung Window Opening Control Device

Operating Instructions

WOCD_Vinyl_DH_01

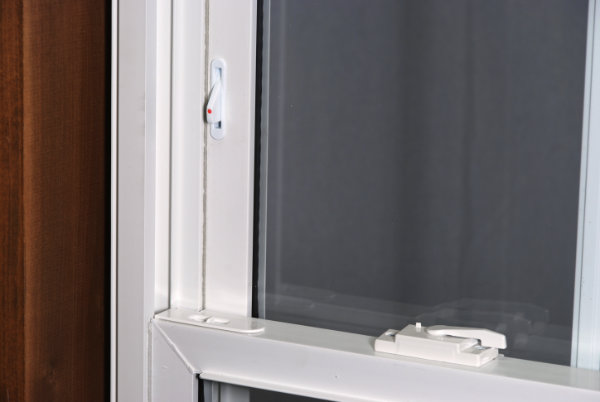

1. WOCD is shown in the active position with the sash closed

WOCD_Vinyl_DH_03

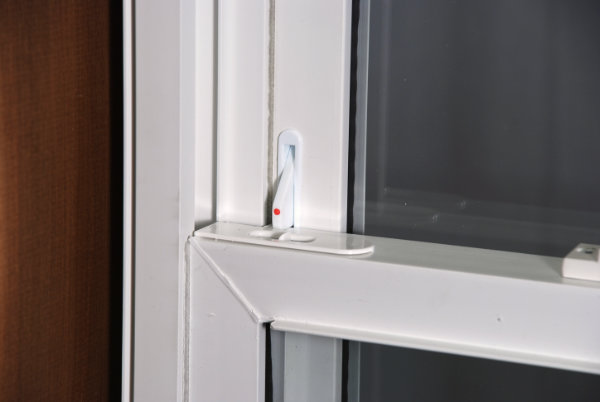

2. WOCD stops the sash from being raised beyond this point

WOCD_Vinyl_DH_04

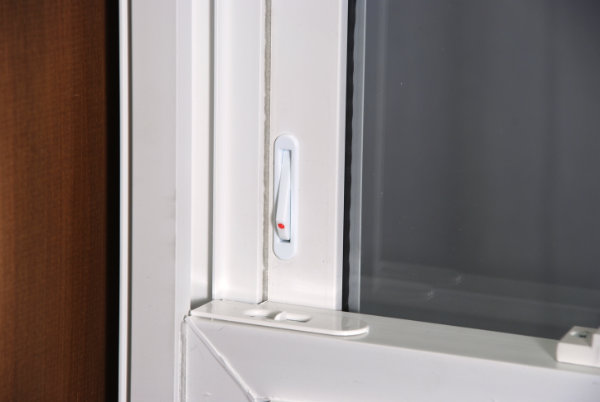

3. Press the WOCD inward to allow the sash to bypass the limiter

WOCD_Vinyl_DH_05

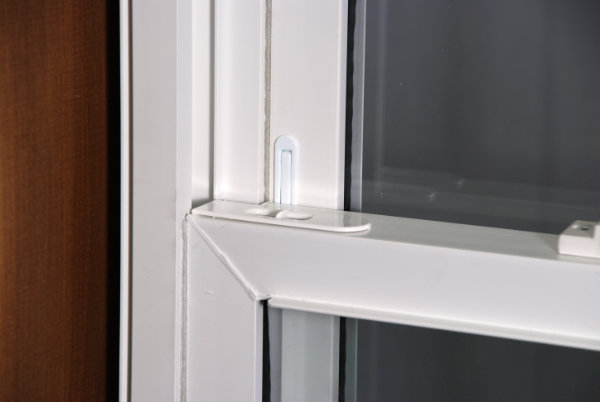

4. Sash shown being raised past the WOCD

Note: The WOCD will automatically reset itself to the active position when the raised sash is lowered back down to the closed position.
