Exterior Casing and Trim

Add Architectural Accents with Extruded Aluminum Casing and Trim

An extruded aluminum exterior casing and trim system is available on our Sun USA Clad Wood and Patriot Clad Vinyl products to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.

Profiles include:
• Traditional Brick Mold
• Georgian Brick Mold
• 3-1/2” Flat Casing
• 5/8” Narrow Sill Nose
• 1-1/8” Wide Sill Nose

Traditional Brick Mold profile

Traditional Brick Mold

Profiled to look like the traditional brick mold used on wood windows. Can be used with either sill nose.

Georgian Brick Mold profile

Georgian Brick Mold

A larger profile with a pronounced rounded ridge. Adds extra dimension. Requires the wide sill nose.

Flat Casing profile

Flat Casing

Wide flat casing with 3-1/2” width. Can be used with either sill nose.

Traditional Brick Mold plus Flat Casing combination profile

Traditional Brick Mold
plus Flat Casing

Combination of the Traditional brick mold plus the Flat Casing. Can be used with either sill nose.

Georgian Brick Mold plus Flat Casing combination profile

Georgian Brick Mold
plus Flat Casing

Combination of the Georgian brick mold plus the Flat Casing. Requires the wide sill nose.

Narrow Sill Nose profile

Narrow Sill Nose

Low, narrow profile sill nose. Can be used with Traditional Brick Mold and Flat Casing.

Wide Sill Nose profile

Wide Sill Nose

Wide profile sill nose. Can be used with all brick molds and casing profiles.

Detail View Applied to Window

Click on the thumbnail to view a larger image
CladTrim_Traditional_SillNose_wide
CladTrim_none
CladTrim_Traditional
CladTrim_Traditional_SillNose_wide

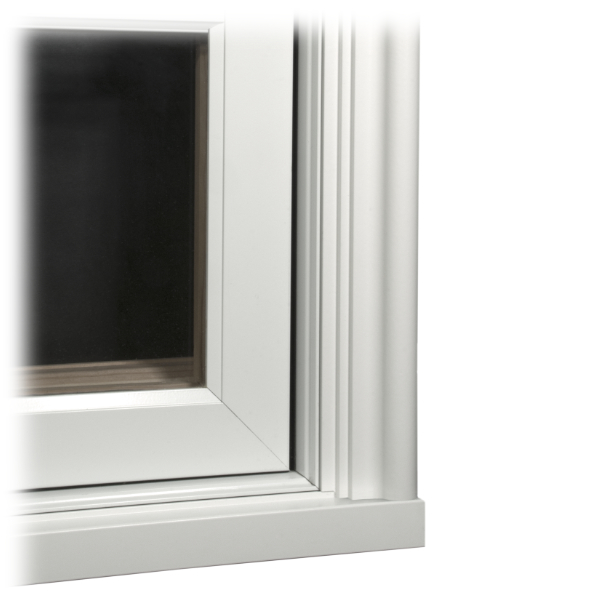

CladTrim_Georgian
CladTrim_FlatCasing_SillNose_narrow
CladTrim_FlatCasing_SillNose_wide
CladTrim_Traditional_FlatCasing_SillNose_narrow
CladTrim_Traditional_FlatCasing_SillNose_wide
CladTrim_Georgian_FlatCasing_SillNose_wide

Profiles

CasingProfiles_Trad1_870
Traditional Brick Mold
CasingProfiles_Trad2_870
Traditional Brick Mold (Radius)
CasingProfiles_Georgian_870
Georgian Brick Mold
CasingProfiles_Flat_870
Flat Casing
CasingProfiles_SillNose_5 8_870
Narrow Sill Nose
CasingProfiles_SillNose_1 1-8_870
Wide Sill Nose

Frame Expanders

Frame Expanders are another way to add dimension to the exterior frame. These flat extrusions can be used used to simulate flat casing and fill the space between the exterior frame and exterior wall treatment, like brick.

FrameExpanders_1
Frame Expander 7/8"

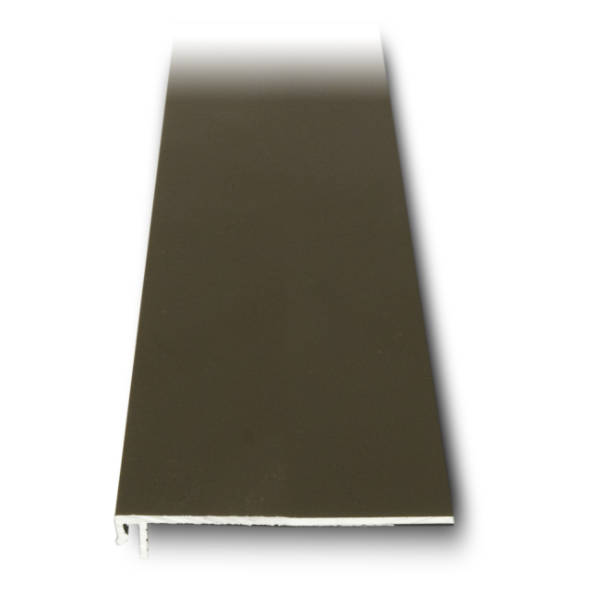

FrameExpanders_2
Frame Expander 2"

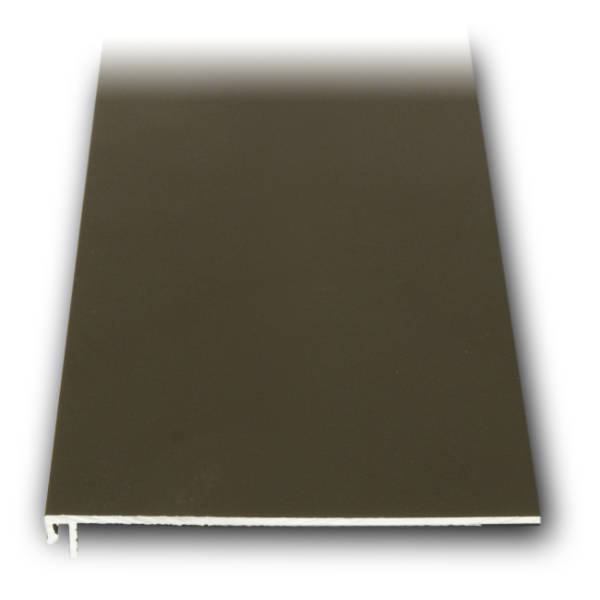

FrameExpanders_3
Frame Expander 3"
FrameExpanders_profiles
