USA Clad Wood
In-Swing Patio Door
Full-View Doors are much more than patio doors. These premium doors, with their many options, can be used anywhere an exterior door is needed. The In-Swing version is hinged so that the door panel opens into the interior of the room.
Product Features
• In-Swing Hinged Panel Opens to the Interior• Full Glass Door Panel• Tempered Insulated Glass• Solid Panel Insert Options• Adjustable Hinge System• Multi-point Latching System• No-Warp Door Panel / LVL Lock Side Stile• 4-11/16” Profile Width Stiles and Rails • Standard Jamb Depth = 4-9/16"Series Features
• Extruded Aluminum Exterior• Clear Pine Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal ProtectionProduct Operation
In-Swing Doors feature a hinged door panel that swings open to the interior of the room. The hinges are adjustable to fine-tune the alignment of the panel.
A multi-point latching system has three latch points that engage the door jamb over the length of the door panel. The door handle set releases the latches to open the door. The latches automatically engage when the door is closed.
No extra action is required to lock the door. Simply turn the lock button from the interior or use the key from the exterior.
Jamb Depth
The standard jamb depth is 4-9/16”. A jamb depth of 6-9/16" is also available. See Jamb Options for more information.
Product Data Sheet
Download PDFIn-Swing Door Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.

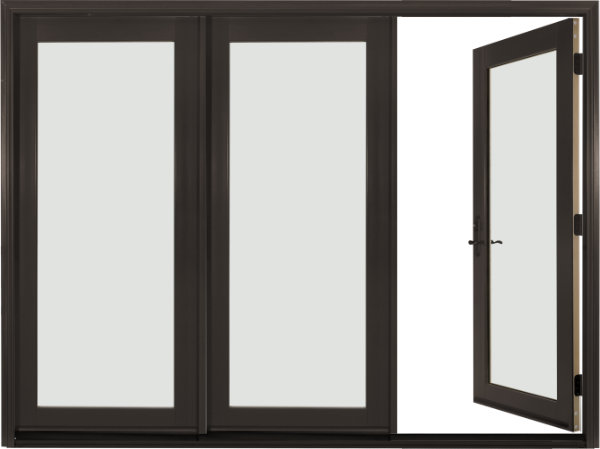

Exterior Trim OptionsConfigurations include single units hinge left, hinge right, or fixed panel, as viewed from the exterior. Available in 1, 2, and, 3-panel units, in various hinged/fixed combinations. We also offer a True-French 2-panel configuration.
Left Hinged (L)
Right Hinged (R)
Fixed (F)
LF
RF
FL
FR
FF
LFF
RFF
FLF
FRF
FFL
FFR
FFF
Our clad-wood products feature clear pine interiors that are ideally suited for staining or painting. Choose to have your windows and doors delivered without any interior finish so that you can stain or paint them yourself or have them primed or painted at the factory with your choice of one of our standard interior finish colors.

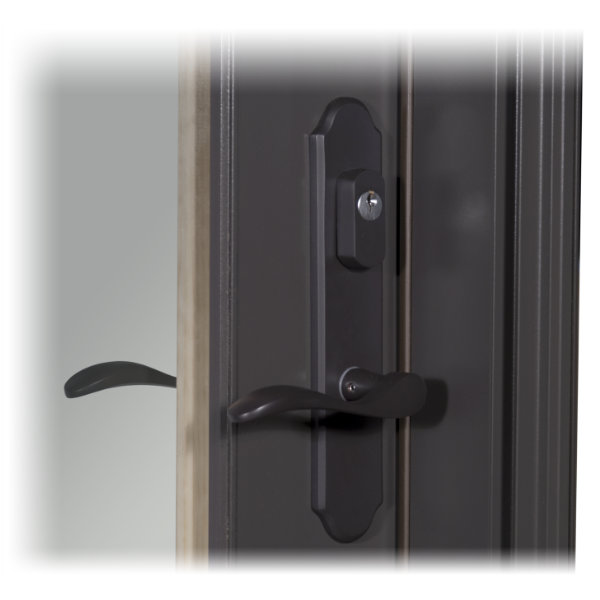

Swing door handle sets provide the opening and locking functions of the door. They are available in three styles and several finishes.
Hardware Options
In-Swing Jambs are 4-9/16” as standard. A 6-9/16” Jamb is also available.
Jamb Options

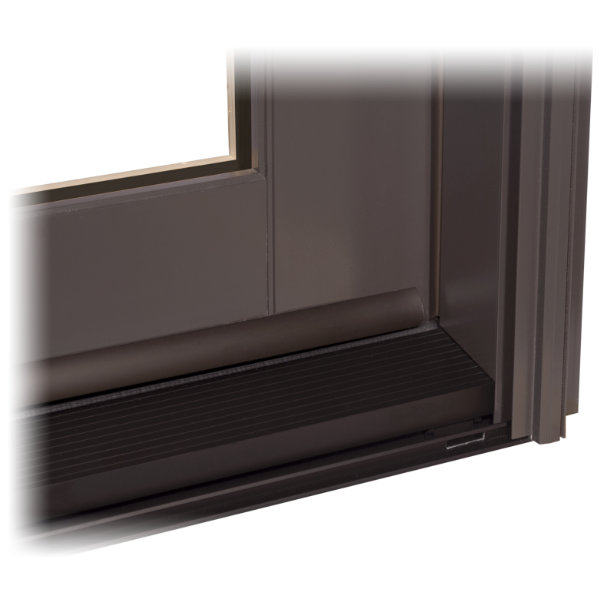

Sun offers a few options for your door applications. We have a standard sill and an ADA sill for most door products. Additional options vary based on the door product.
Sill Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
All doors come with Tempered glass as standard.
Quick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Several grille systems are available to add lite division to the glass area.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Sun Clad Wood Doors, including swing doors, sliding doors, and bi-fold doors, all use a common door panel. These panels are typically full-view glass panels. However, there are several options for configuring the panels to reflect unique styles and designs.
Panel Options
A screen is available for two and three-panel configurations. The screen mounts in a track to the exterior of the door panels. It can be slid sideways to cover the opening when the door panel is left open.
Screen Options
4-11/16” Profile Width Stiles and Rails
All of our standard door panels feature equal stile and rail face dimensions. Panel rails and stiles are 4-11/16”.
A tall bottom rail option is available for applications requiring a tall profile.
Optional solid insert panels are available in many configurations to achieve almost any balance between glass view and non-viewing areas.
