Glass Stop Options

Standard Stop


Standard Glass Stop

This is the standard wood glass stop used on most of our Sun Clad Windows and Doors. It has an overall profile width of 9/16” which includes a 3/8” flat surface followed by a slight stepdown recessed surface for the remaining 3/16” of the width. The outer edge of the stop is rounded. This gives the stops a subtle visual accent.

Standard Glass Stop Detail View
Standard Glass Stop Detail View

Contemporary Stop


Contemporary Glass Stop

Our Contemporary wood glass stop is available as an option on most of our Sun Clad Windows and Doors. It has an overall profile width of 9/16” and is flat across the entire face. This provides a squared-off appearance, which is more in keeping with Contemporary designs.



Contemporary Glass Stop Detail View
Contemporary Glass Stop Detail View

Direct Set Standard Stop


Standard Glass Stop on Direct Set Fixed Lite

This is the standard wood glass stop used on Direct Set Fixed Lite windows. It has an overall profile width of 9/16” and a distinct beveled face which is designed to transition from the glass face to the edge of the glazing channel pocket.




Direct Set Standard Glass Stop Detail View
Direct Set Standard Glass Stop Detail View

Direct Set Contemporary Stop

Contemporary Glass Stop on Direct Set Fixed Lite

This is our Contemporary wood glass stop for Direct Set Fixed Lite windows. It has an overall profile width of 9/16” and is flat across the entire face. This provides a squared-off appearance, which is more in keeping with Contemporary designs.

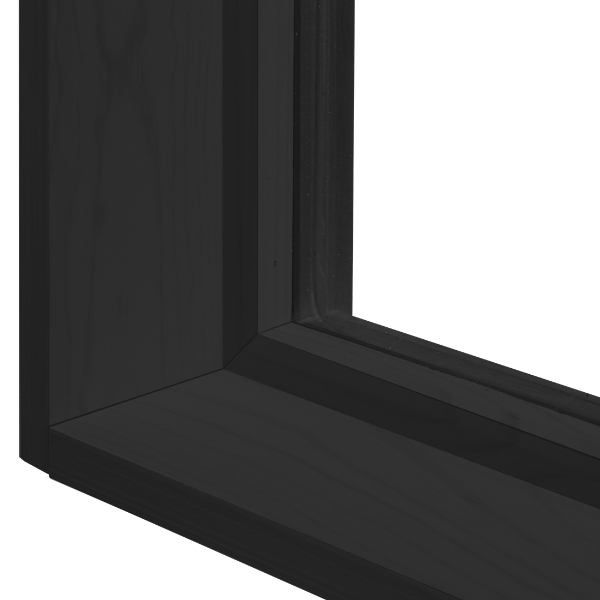

Direct Set Contemporary Glass Stop Detail View
Direct Set Contemporary Glass Stop Detail
