USA Clad Wood

Arch Top Door

Arch Top Doors are similar to our regular In-Swing or Out-Swing Doors but they feature an Arched Top. These are available as single-panel units or as True-French two-panel units.

Clad Wood Arch Top Patio Door

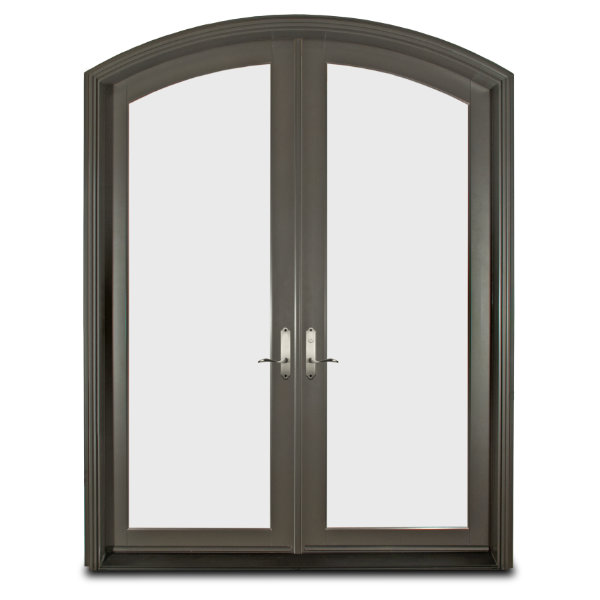

Arch Top Door SingleArch Top Door DoubleArch Top Door Exterior 1Arch Top Door Interior 1Arch Top Door Interior 2Arch Top Door Exterior 2

Product Features

Series Features

• Extruded Aluminum Exterior• Clear Pine Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal Protection

Product Operation

Arch Top Doors are available as In-Swing or Out-Swing Doors. They operate just like the standard versions of these doors.

A multi-point latching system has three latch points that engage the door jamb over the length of the door panel. The door handle set releases the latches to open the door. The latches automatically engage when the door is closed.

No extra action is required to lock the door. Simply turn the lock button from the interior or use the key from the exterior.

Jamb Depth

The standard jamb depth is 4-9/16”. A jamb depth of 6-9/16" is also available. See Jamb Options for more information.

Product Data Sheet

Download PDF

Arched Top Door Options

Click on the tabs below to view the various options available for this product.

Door Panels
Panel Options

Sun Clad Wood Doors, including swing doors, sliding doors, and bi-fold doors, all use a common door panel. These panels are typically full-view glass panels. However, there are several options for configuring the panels to reflect unique styles and designs.

Panel Options
Exterior Colors
Exterior Colors

All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.

Exterior Color Options
Exterior Trim
Exterior Trim

An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.

Exterior Trim Options
Configurations

Arch Top Doors are available with operating panels hinged Left or Right as viewed from the exterior, or as a Fixed panel. They are also available in a two-panel True French configuration.

L

Single

R

Double / True French

Wood Interior Finishes
Wood Interior Options

Our clad-wood products feature clear pine interiors that are ideally suited for staining or painting. Choose to have your windows and doors delivered without any interior finish so that you can stain or paint them yourself or have them primed or painted at the factory with your choice of one of our standard interior finish colors.

Interior Finish Options
Hardware
Handle Set
Handle Set Styles

Swing door handle sets provide the opening and locking functions of the door. They are available in three styles and several finishes.

Hardware Options
Jambs
Jamb Options

Swing Jambs are 4-9/16” as standard. A 6-9/16” Jamb is also available.

Jamb Options
Sills
Sill Options

Sun offers a few options for your door applications. We have a standard sill and an ADA sill for most door products. Additional options vary based on the door product.

Sill Options
Glass
Insulated Glass

Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.

All doors come with Tempered glass as standard.

See Glass Options

Quick Links to our Glass Types

SunAdvantage 270 Low-E glass
SunAdvantage 270 plus i89 Low-E glass
SunAdvantage 366 Low-E glass
SunAdvantage 366 plus i89 Low-E glass
SunAdvantage 452 Low-E glass with Neat+
Obscure glass
Grille Systems


Grille Systems

Several grille systems are available to add lite division to the glass area.

Grille Types
Grille Patterns
Grille Patterns

Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.

Grille Patterns

Technical Information

Click on the tabs below to view the related technical information.

Sizes
• Widths:
1-panel - 2-6, 2-8, 3-0, 3-3
2-panel - 4-0, 5-0, 5-4, 6-0, 6-6
• Heights: 6-8 retro, 6-11, 8-0

Size Chart: In-Swing DoorsSize Chart: Out-Swing Doors
