Bi-Fold Door

Bi-fold Doors are a combination of clad-wood door panels and innovative folding door hardware developed by Centor Architectural™. Bi-fold Doors open up design possibilities for spectacular views and unhindered access between the inside of the home and the beauty of the outdoors.

Clad Wood BiFold Door
BiFold Door Exterior ClosedBiFold Door Exterior Half OpenedBiFold Door OpenedBiFold Door Interior ClosedBiFold Door Interior Half OpenedBiFold Door Interior Opened

Product Features

Series Features

• Extruded Aluminum Exterior• Clear Pine Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal Protection

Product Operation

The door panels have all the same features and options as our In-Swing & Out-Swing doors. The difference is the Bi-folding track system. The door panels will open and accordion into a condensed stack to the exterior of the room.

Centor’s E3 bi-fold hardware is a hanging track system that requires engineered structural support. Among other specifications, this means that the wall must accommodate a 6-9/16” Jamb depth.

Jamb Depth

Bi-Fold products require 6-9/16” Jamb Depth.

Product Data Sheet

Download PDF

Bi-Fold Door Options

Click on the tabs below to view the various options available for this product.

Panel Options
Door Panel Options

Clad Wood Doors, including swing doors, sliding doors, and bi-fold doors, all use a common door panel. These panels are typically full-view glass panels. However, there are several options for configuring the panels to reflect unique styles and designs.

Panel Options
Exterior Colors
Exterior Colors

All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.

Exterior Color Options
Exterior Trim
Exterior Trim

An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.

Exterior Trim Options
Configurations

Bi-Fold Doors are available in multiple panel configurations up to 8 panels wide. Several parting configurations are available. See the Configuration Chart for more details.

Bi-Fold Doors ship as kits to be assembled and installed on location. See our Bi-Fold Door Installation Instructions.

Configuration Chart
Wood Interior Finishes
Wood Interior

Our clad-wood products feature clear pine interiors that are ideally suited for staining or painting. Choose to have your windows and doors delivered without any interior finish so that you can stain or paint them yourself or have them primed or painted at the factory with your choice of one of our standard interior finish colors.

Interior Finish Options
Hardware
Stainless Steel Hardware

Stainless Steel

Dark Bronze Hardware

Dark Bronze

Polished Brass Hardware

Polished Brass

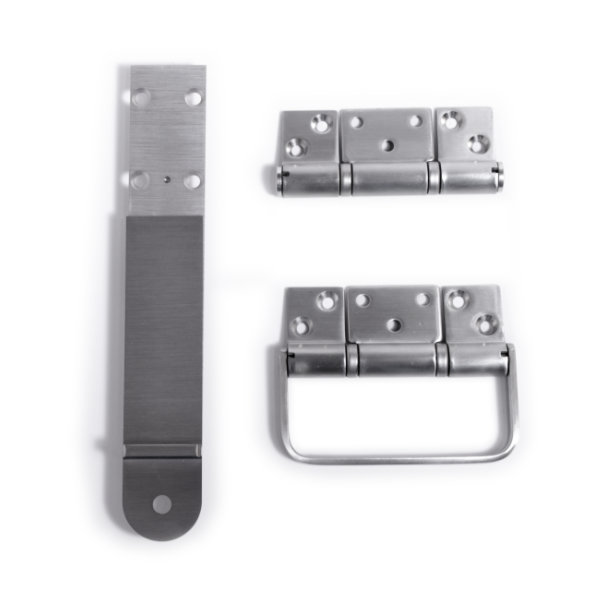

The hinges, drop bolts and handles are available in three finishes: stainless steel, dark bronze, and polished brass.

Hardware Options
Jambs
Jamb Options

Bi-Fold Jambs are 6-9/16”.

Jamb Options
Glass
Insulated Glass

Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.

See Glass Options

Quick Links to our Glass Types

SunAdvantage 270 Low-E glass
SunAdvantage 270 plus i89 Low-E glass
SunAdvantage 366 Low-E glass
SunAdvantage 366 plus i89 Low-E glass
SunAdvantage 452 Low-E glass with Neat+
Obscure glass
Grille Systems


Grille Systems

Several grille systems are available to add lite division to the glass area.

Grille Types
Grille Patterns
Grille Patterns

Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.

Grille Patterns
Sills
Sill Options

Standard Sill

Three sill options accommodate application requirements. The standard sits above the floor, similar to other exterior doors, which provides the best weather protection for units directly exposed to the elements. An ADA sill is available for applications requiring that level of accessibility. The third option calls for a floor channel, which provides the smoothest transition between the two sides but requires additional weather protection for the exterior space.

Sill Options

Technical Information

Click on the tabs below to view the related technical information.

Sash/Panel Sizes
• Widths: 2-6, 2-8, 3-0, 3-3
• Heights: 6-8 retro, 6-11, 8-0

Configurations Chart
