Our Series 2020 All-Vinyl Awning window is similar to a Casement window, except the sash opens outward from the bottom of the window with pivot points near the top.
A dual lever latching system releases the left and right side sash latches. Side-mounted glide hinges put the pivot point near the top of the window. A folding operator handle accesses the crank-out mechanism to open and close the sash.
Sash Snubbers are used to prevent sash bowing when the window is in the closed position.
Awning windows feature an interior screen mounting channel that can be used to hold an optional screen to help keep out insects when the sash is open. See Screen Options for information about compatible screen systems.
The jamb depth is 2” from the nailing fin. Overall jamb depth without the nailing fin is 3-1/4”. Jamb extensions increase the jamb depth to 4-9/16". See Jamb Options for more information.
Click on the tabs below to view the various options available for this product.
Sun Vinyl extrusions have a heavy wall thickness, as well as multi-chambered designs, including a double-walled glazing lip, that contains more vinyl material than many of our competitors. This helps Sun vinyl windows be stronger and more durable than thinner, cheaper windows.
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.Exterior Trim Options

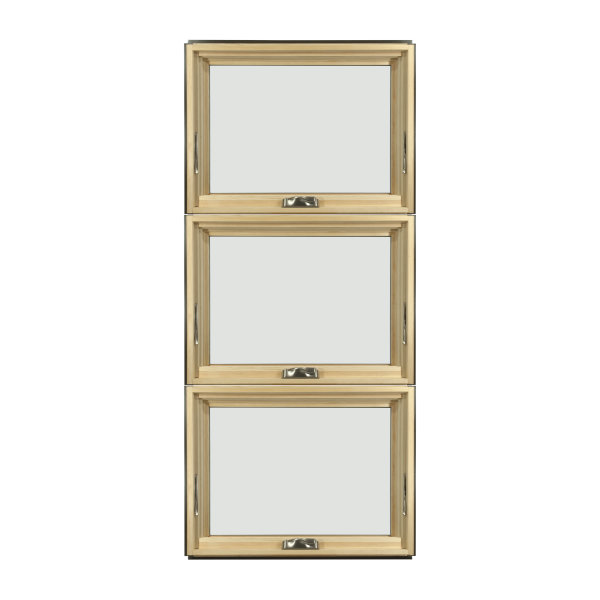

Common configurations include an Awning with a Fixed Lite above it or up to four Awnings mulled on top of each other. Other combinations are possible.
Our Series 2020 vinyl products feature an all-vinyl window interior. Finishes available include White and Sand.
The awning window operator is available in two styles and a selection of finishes.Hardware Options
The jamb depth is 2” from the nailing fin. Jamb extensions increase the jamb depth to 4-9/16”.Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.See Glass Options
Quick Links to our Glass Types
Grille systems are available to add lite division to the glass area. GBGs, or grilles between glass, are the main choice for vinyl windows.
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.Grille Patterns

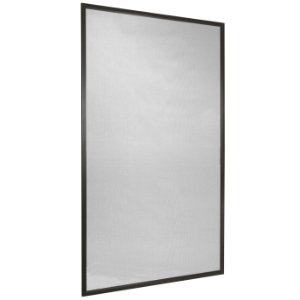

Screens are available to help keep insects from entering through a window that is open for ventilation.
Vinyl Awnings are compatible with our Roll-Form Screen or the Flex Screen. See Screen Options for information about these screen systems.
Content Area 12
Click on the tabs below to view the related technical information.
• Widths: 32”, 36”, 40”, 48”, 52”, 59”, 64”, 72”
• Heights: 16”, 20”, 24”, 28”, 30”, 32”, 36”
An awning window sash can be opened fully to provide ventilation through the entire window opening. Compare this to a double-hung window, which can only open to expose less than half the entire window opening. This is a nice benefit for those who enjoy letting in the fresh air.
The operator handle folds up and stores in the operator cover when not in use. This convenient feature keeps the window interior from appearing cluttered and minimizes the chance of anything bumping or snagging on the handle.

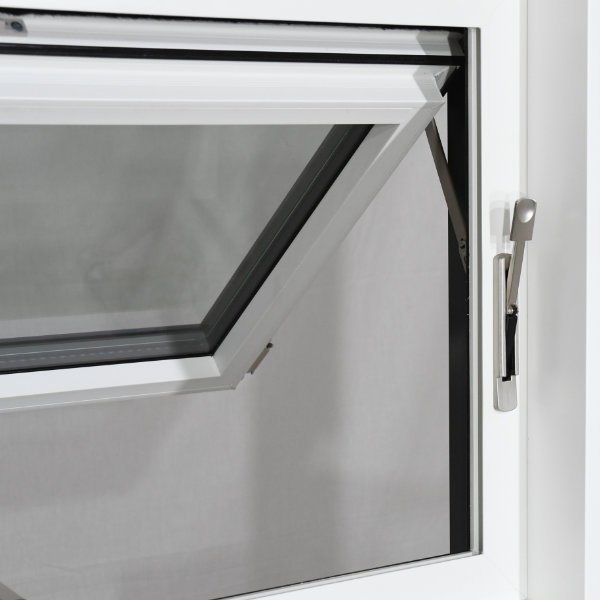

The side-mounted glide hinge assemblies control the opening and pivot hinging of the awning sash. These hinges have some adjustability that allows them to fine-tune the alignment of the sash within the window frame.

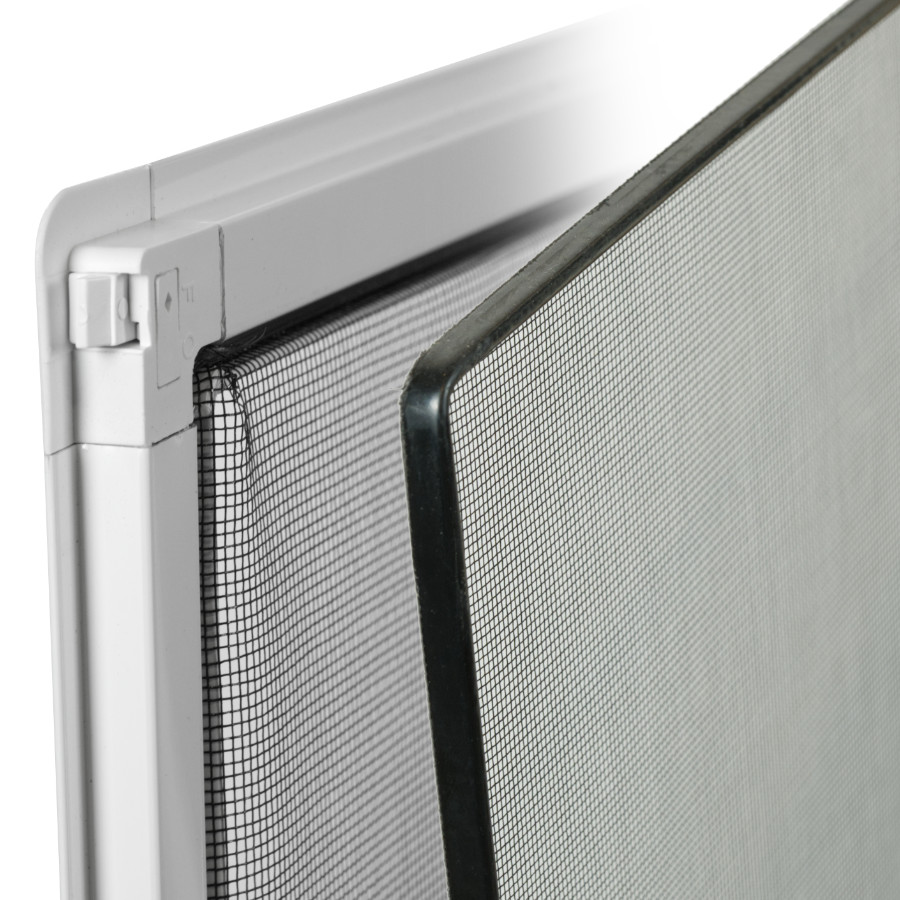

Like the casement, awning windows feature an interior-mounted screen option. The interior vinyl has a channel that helps to hold the screen in place when installed. If you like to open your windows to allow in the fresh air, a screen can help keep insects from coming in through the opening.
Series 2020 Vinyl has a jamb depth of 2” with the nailing fin applied. Without the nailing fin, the overall jamb depth is 3-1/4”.
