Vinyl 2020 Series
Casement
The Series 2020 All-Vinyl Casement window has a full-view sash and crank-out operation. It offers a broad view when closed and maximum ventilation when fully opened. The plain profile of the sash exterior with its mitered corners and deep glazing stop provides a simple but classic appeal.
Product Features
• Full View Sash• Crank Out Sash Operation• Full Opening Ventilation• Folding Operator Handle• Single Lever Multi-point Latching System• Adjustable Hinge System• Interior Screen Mounting Channel• Jamb Depth = 2"Series Features
• All-Vinyl Interior & Exterior• Add-On Vinyl Nailing Fin• Water Management System• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Complete Weather Seal ProtectionProduct Operation
A single lever handle raises to release the multi-point sash latches while a folding operator handle accesses the crank-out mechanism to open and close the sash.
Our hinge system sets pivot points at the top and bottom of the sash to achieve left or right hinging, depending on your choice. Hinging is specified as viewed from the exterior.
Sash Snubbers, on the hinge side sash and jamb, are used to prevent sash bowing when the window is in the closed position.
Interior Screen Channel
Casement windows feature an interior screen mounting channel that can be used to hold an optional screen to help keep out insects when the sash is open.
Clad Vinyl Casements are compatible with our Roll-Form Screen or the Flex Screen. See Screen Options for information about these screen systems.
Jamb Depth
The jamb depth is 2” from the nailing fin. Overall jamb depth without the nailing fin is 3-1/4”. Jamb extensions increase the jamb depth to 4-9/16". See Jamb Options for more information.
Product Data Sheet
Download PDFSeries 2020 Casement Options
Click on the tabs below to view the various options available for this product.
Sun Vinyl extrusions have a heavy wall thickness, as well as multi-chambered designs, including a double-walled glazing lip, that contains more vinyl material than many of our competitors. This helps Sun vinyl windows be stronger and more durable than thinner, cheaper windows.
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsConfigurations of Left hinged, Right hinged, or Fixed are available for any single unit. One, two, three, and four-panel units are available.
Single Unit
Left Hinged - Rixed - Right Hinged
Double Unit
Left/Right
Triple Unit
Left/Fixed/Right
Quad Unit
Left/Fixed/Fixed/Right
Our Series 2020 vinyl products feature an all-vinyl window interior. Only available in White.
Standard/Contoured Operator Cover & Folding Handle
Contemporary Operator Cover & Folding Handle
The casement window operator is available in two styles and a selection of finishes.
Hardware Options
The jamb depth is 2” from the nailing fin. Jamb extensions increase the jamb depth to 4-9/16”.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
See Glass OptionsQuick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Grille systems are available to add lite division to the glass area. GBGs, or grilles between glass, are the main choice for vinyl windows.
Grille systems add a divided lite design to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Vinyl Casements are compatible with our Roll-Form Screen or the Flex Screen. See Screen Options for information about these screen systems.
Content Area 12
Full Opening Ventilation
A casement window sash can be opened fully to provide ventilation through the entire window opening. Compare this to a double-hung window, which can only open to expose less than half the entire window opening. This is a nice benefit for those who enjoy letting in the fresh air.

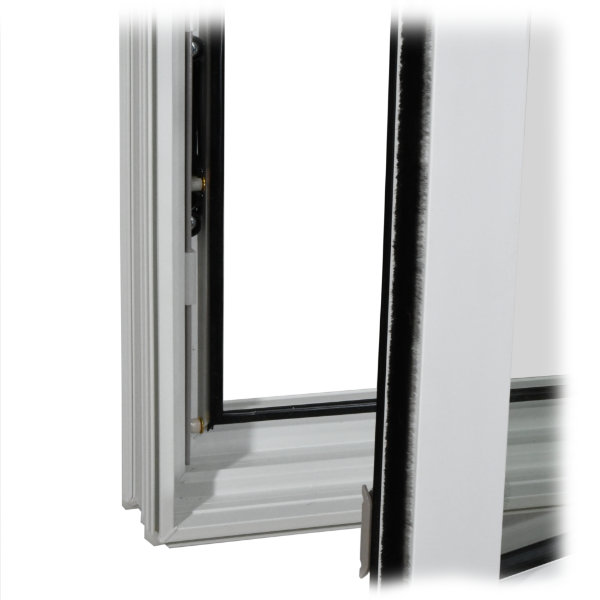

Single Lever Multi-point Latching System
The casement sash is secured by a lever-activated latching system. A set of latching hooks are attached to the opening edge of the sash. These hooks engage the sash keepers that are concealed within the opening side frame. A single lever secures and releases all latching points.
Interior Screen Mounting Channel
Due to the outward opening of the sash, casement windows feature an interior-mounted screen option. The vinyl interior has a screen channel that helps to hold the screen in place when installed. If you like to open your windows to allow in the fresh air, a screen can help keep insects from coming in through the opening.
