Patriot Clad Vinyl
Narrow Frame Fixed Lite

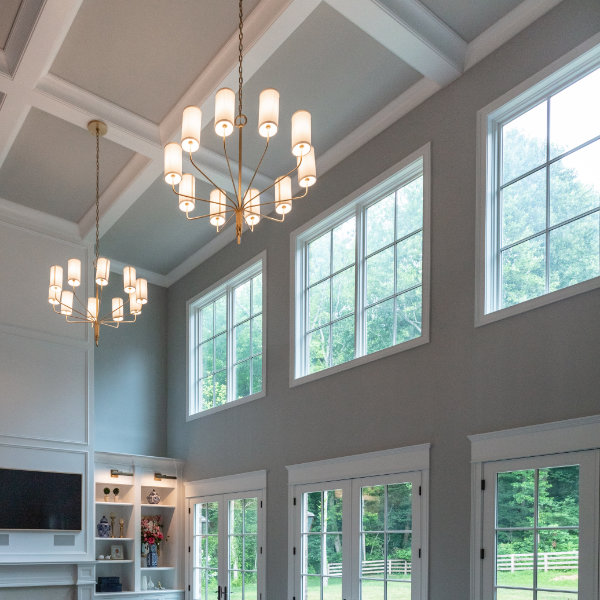

Our clad vinyl narrow fixed lite uses a narrow frame in which the insulated glass is set. This gives it a slim profile and maximizes the view opening of the window.
Product Features
• Maximum View Area• Narrow Frame Profile• Jamb Depth = 2-9/16"Series Features
• Extruded Aluminum Exterior• Vinyl Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Complete Weather Seal ProtectionProduct Description
Two Fixed Lite windows are available to go with our clad vinyl products. The two styles have different profiles to coordinate with other products for interior trim applications and visual sight lines.
Our Narrow Frame Fixed Lite features a minimal profile that reduces its visibility within the wall. This narrow frame also maximizes the view opening of the window.
Narrow Frame vs Wide Frame
Here is a comparison of our Narrow Frame Fixed Lite, left side, to our Wide Frame Fixed Lite, right side. The Narrow Frame is designed to maximize the viewing area of the window. The Wide Frame more closely matches the profile of the Casement and Awning of products.
Jamb Depth
The jamb depth is 2-9/16”. Jamb extensions increase the jamb depth to 4-9/16” or 6-9/16”. See Jamb Options for more information.
Product Data Sheet
Download PDFNarrow Frame Fixed Lite Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options
An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsFixed Lites are available in a variety of shapes from Rectangles, to Radius, to Geometric shapes.
Our clad vinyl products feature an all-vinyl window interior. Finishes available include White and Sand.
A factory-applied Black Film is also available for a contemporary look.
Standard/Contoured Operator Cover & Folding Handle
Contemporary Operator Cover & Folding Handle
The casement window operator is available in two styles and in a selection of finishes.
Hardware Options
The jamb depth is 2-9/16”. Jamb extensions increase the jamb depth to 4-9/16” or 6-9/16”.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
See Glass OptionsQuick Links to our Glass Types
Glass stops are available in standard and contemporary profiles for most products.
Glass Stops
Grille systems are available to add lite division to the glass area. Clad Vinyl products are compatible with SDLs using the raised profile bar on both sides. They are also compatible with GBGs. See Grille Types for more information.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Screen OptionsContent Area 12
Jamb Depth - 2-9/16"
Our clad vinyl products are designed to have a minimal visual impact on the wall. They are often integrated as part of a Drywall Return finishing system. The 2-9/16” jamb depth works well with this application.
Extensions are also available to fit 4-9/16” and 6-9/16” wall thicknesses.
