Patriot Clad Vinyl
Double Hung

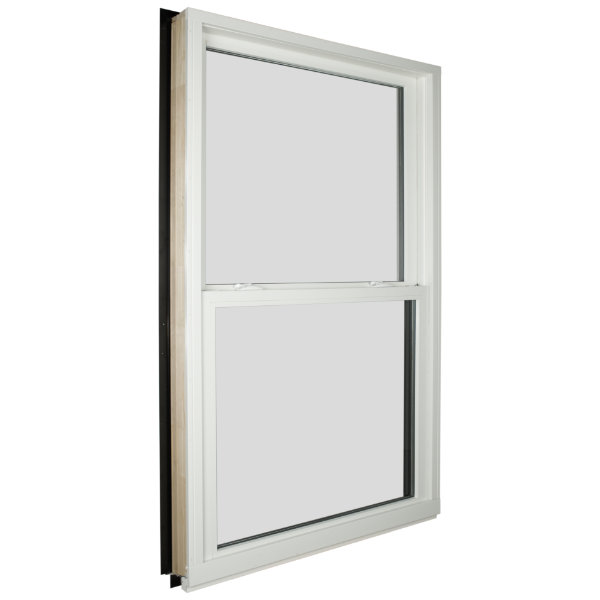

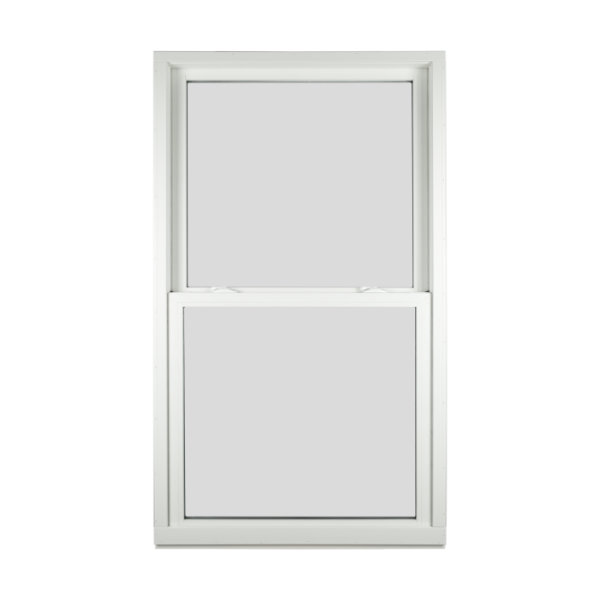

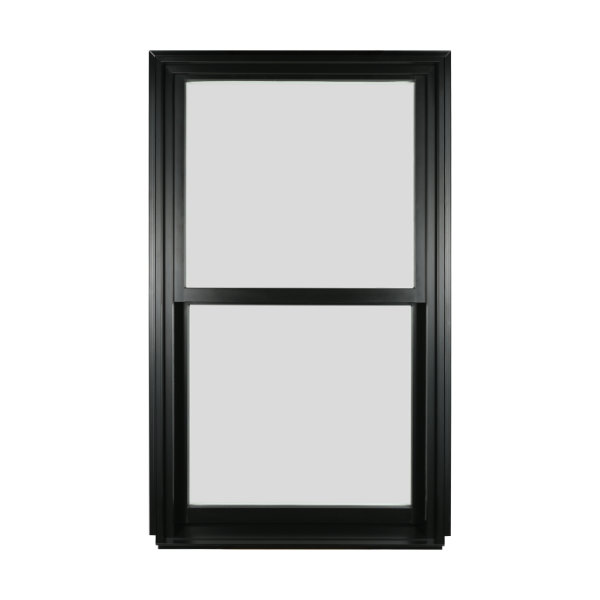

Sun's Patriot Clad Vinyl Double Hung window is designed to take advantage of an extruded aluminum clad exterior and the easy-care of a vinyl window interior.
Product Features
• Vertical Raise and Lower Sash Operation• Tilt-In Sashes• Finger Release Tilt-Sash Latches• Traditional Block and Tackle Balance System• Concealed Jamb System• Vinyl Fixed Jamb Tracks• Locking-When-Tilted Sash Balance Shoes• Standard Jamb Depth = 4-9/16"Series Features
• Extruded Aluminum Exterior• Vinyl Window Interior• Integral Nailing Fin• Water Management System• Powder Coated Exterior Finish• Low-E Insulated Glass• Argon Gas Filled Airspace• Duralite™ Glass Spacer System• Black Glazing Channel• Complete Weather Seal ProtectionProduct Operation
A double hung is the traditional sash-over-sash, raise, and lower window. The two sashes overlap near the middle of the window to form a check rail where they lock together. One or two cam-action locks, depending on the size of the window, secure the sashes. A pair of finger-release tilt latches engage the side sash tracks and can be disengaged to tilt the sash inward for cleaning or other access. Locking-when-tilted balance shoes help hold the sash in place when tilted.

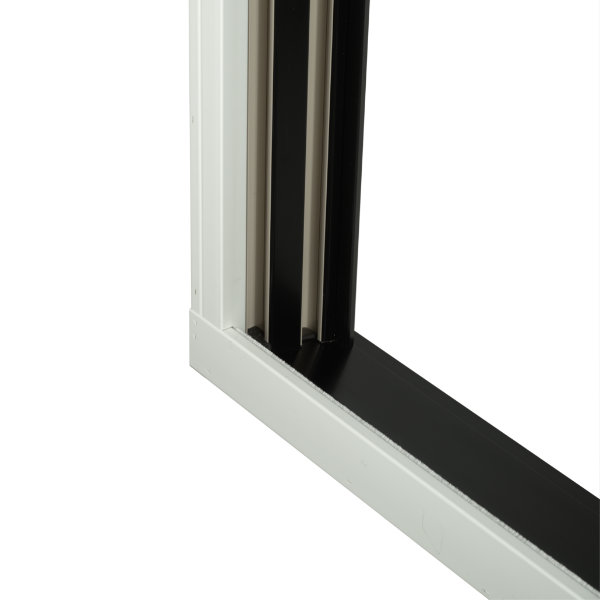

Traditional Block and Tackle balances assist in raising, lowering, and holding the sashes in place when operating. Vinyl Jamb Tracks that house the balance system are concealed (not seen from head-on view) within each side jamb.
Exterior Screen Mounting

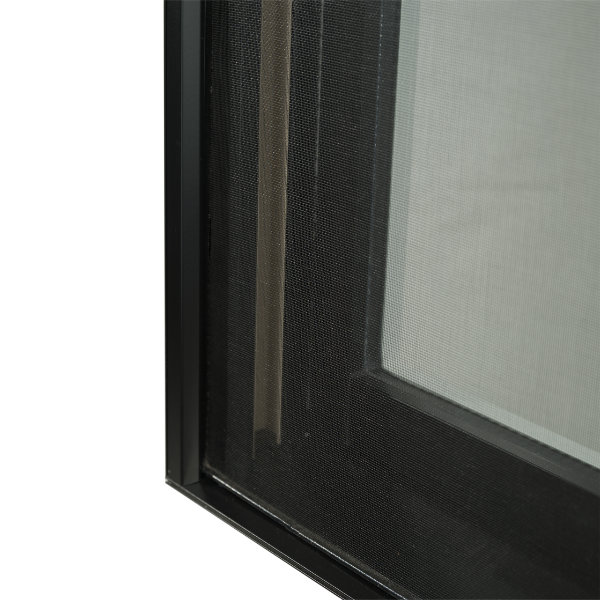

Exterior-mounted screens are available to help keep out insects when the sash is open. See Screen Options for more information.
Jamb Depth

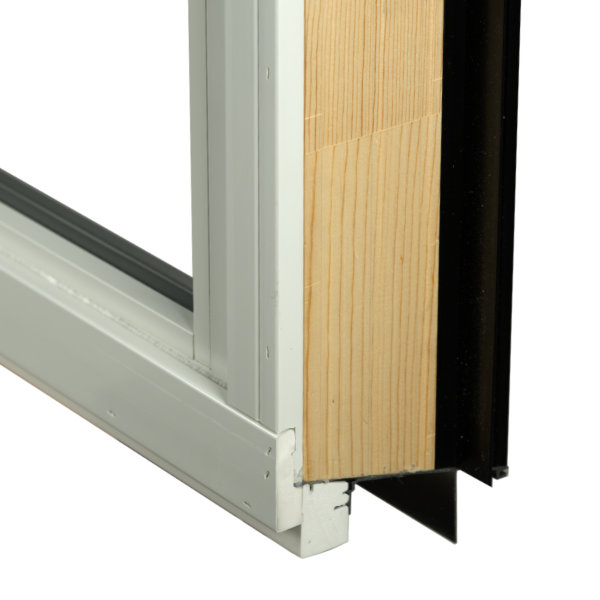

The standard jamb depth is 4-9/16”. A jamb depth of 6-9/16" is achieved with 2" extensions. Additional jamb options are available. See Jamb Options for more information.
Product Data Sheet
Download PDFDouble Hung Options
Click on the tabs below to view the various options available for this product.
All of our extruded aluminum-clad windows and doors are available in a wide range of exterior powder-coated finish colors to coordinate with the design of your project. Click on the link below to see our color choices.
Exterior Color Options

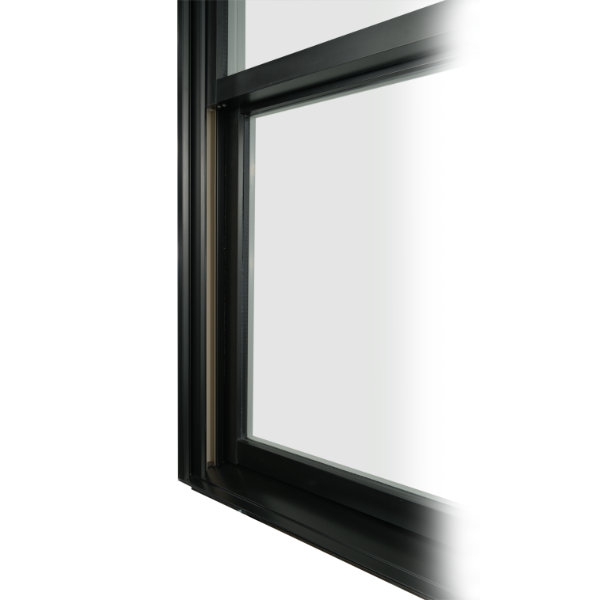

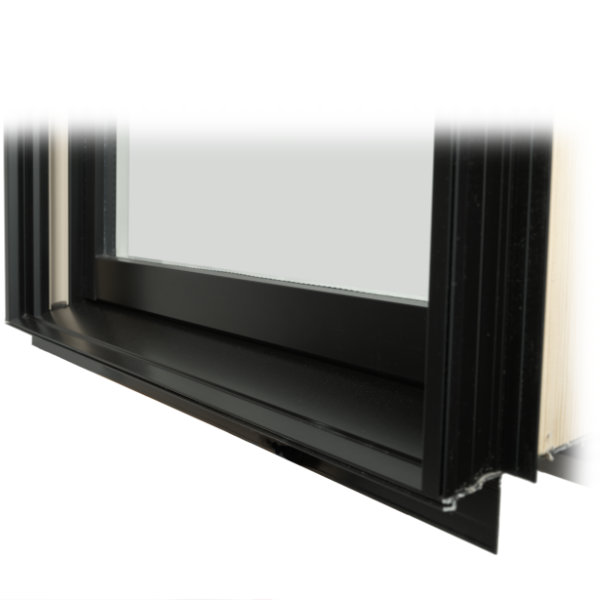

An extruded aluminum exterior casing and trim system is available on our clad windows and doors to enhance the visual appeal of the windows and doors. Available in a variety of trim and casing profiles, these extrusions add a dimensional accent to the product and the home or building.
Exterior Trim OptionsConfigurations include a standard 50/50 sash split as well 40/60 Cottage and 60/40 Oriel proportions. Double Hung windows can be mulled together for multi-wide units or with compatible-sized Fixed Lites.
Standard 50/50 Sash Split
Cottage 40/60 Sash Split
Oriel 60/40 Sash Split
Our clad vinyl products feature an all-vinyl window interior. The window interior is White. A factory-applied Black Film is also available for a contemporary look.

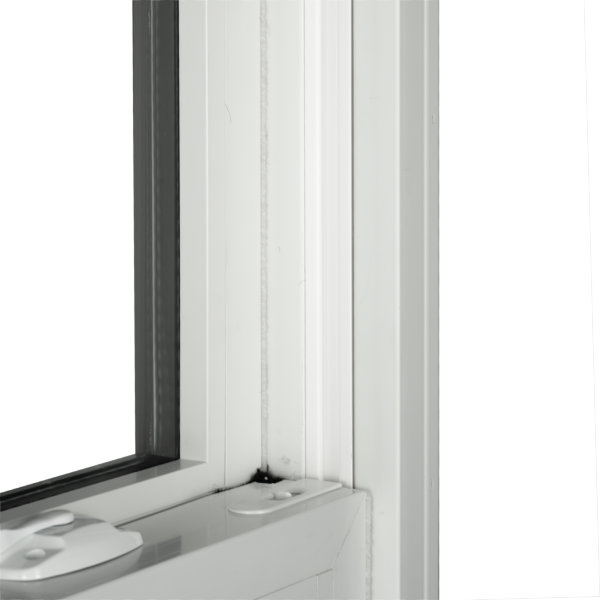

Sun uses black jamb covers as standard on windows with factory-applied black interior finish: white jamb covers as standard on windows with factory-applied white interior finish.

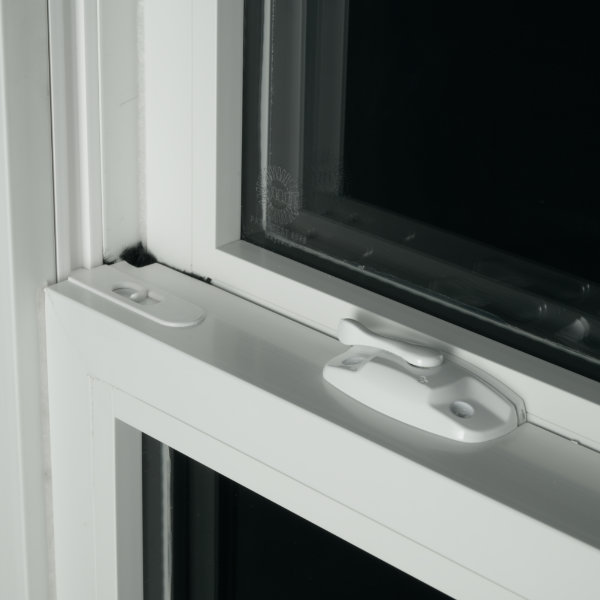

Sash Lock & Tilt Latch

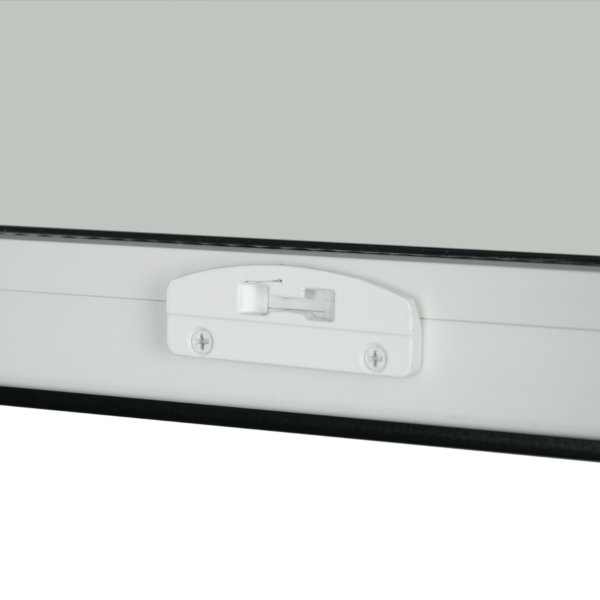

Double-hung windows feature cam-action sash locks and finger-release tilt latches. See the hardware options on our Hardware Page.
Hardware Options
Double-hung windows have a standard jamb depth of 4-9/16”. Extensions can be applied for 6-9/16” and other jamb depths.
Jamb Options
Insulated Glass is the heart of the energy efficiency of windows and patio doors. Sun manufactures our insulated glass units to ensure the quality and performance of our Insulated Glass. Learn more on our Glass Options page.
See Glass OptionsQuick Links to our Glass Types
Grille systems are available to add lite division to the glass area. Clad Vinyl products are compatible with SDLs using the raised profile bar on both sides. They are also compatible with GBGs. See Grille Types for more information.
Grille Types
Grille systems add divided lite designs to windows and doors. They are available in a variety of patterns that can be customized to meet your design needs.
Grille Patterns
Screens are available to help keep insects from entering through a window that is open for ventilation.
Screen OptionsContent Area 12
Historically Accurate Details

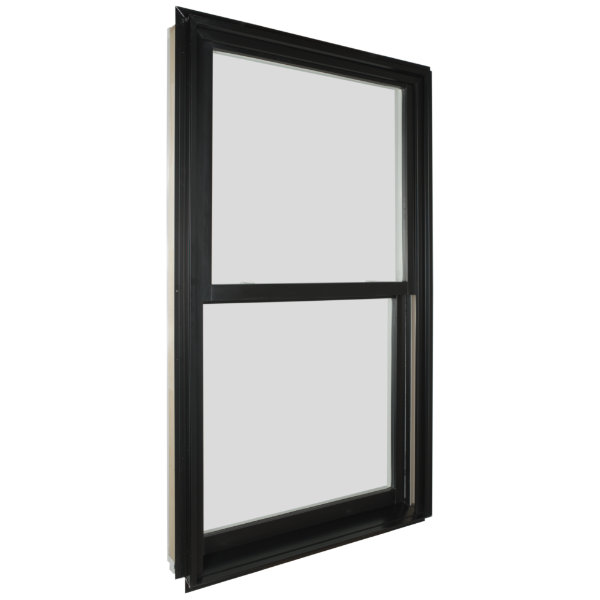

Historically accurate details, including a tall bottom rail on the bottom sash and top rail on the top sash, as well as a wider frame appearance, gives the Architectural Double Hung a traditional appeal. These details are important in restoration projects where historical representation is desired.
Vertical Raise and Lower Sash Operation

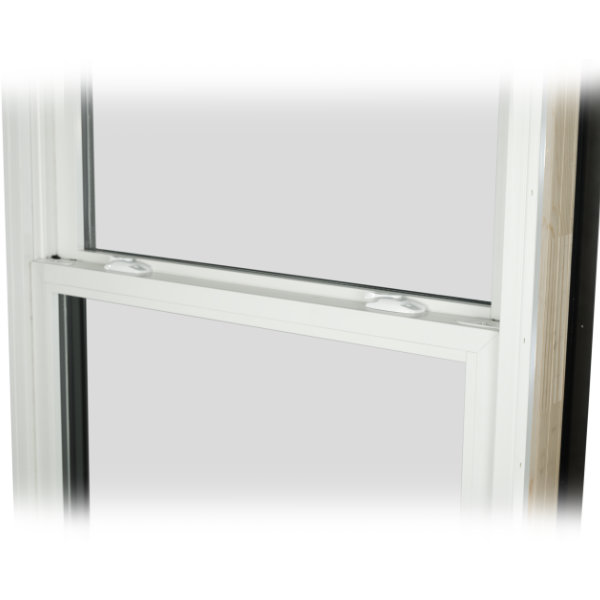

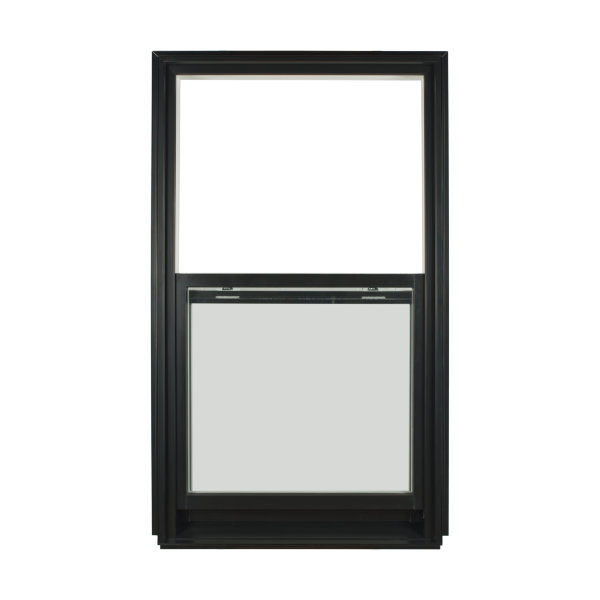

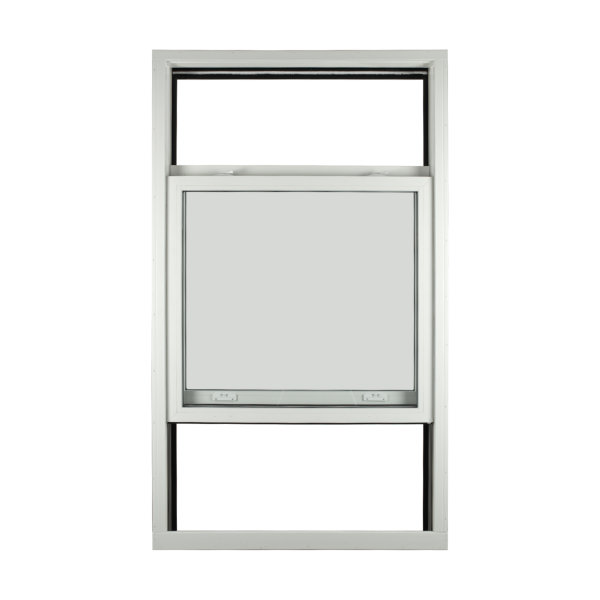

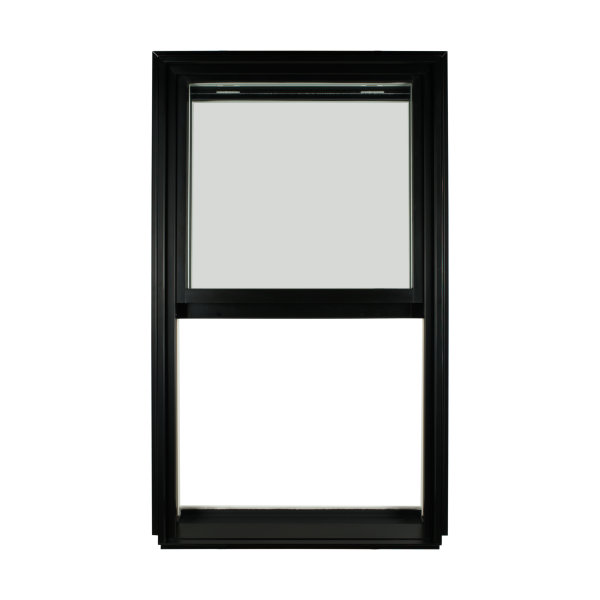

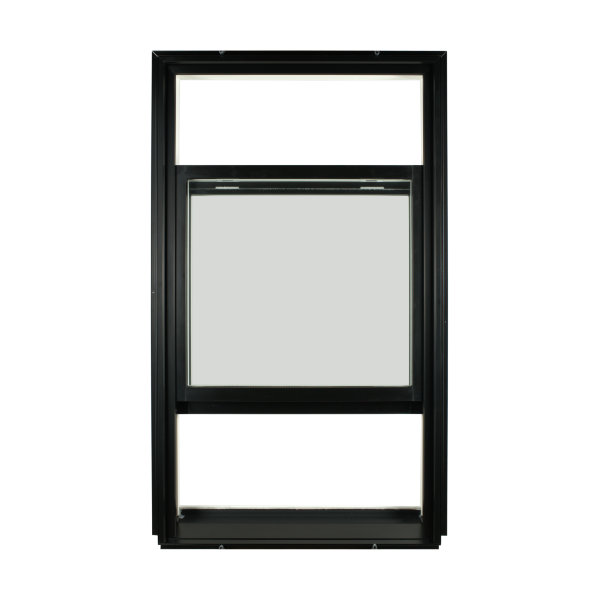

Double Hung windows feature a pair of sashes, one hung above the other. The top sash is placed towards the exterior of the window frame, while the bottom sash is placed towards the interior. This allows them to pass by each other when the bottom sash is raised to open or the top sash is lowered to open. The checkrail is the meeting point where the two closed sashes overlap and seal against each other.
Tilt-In Sashes

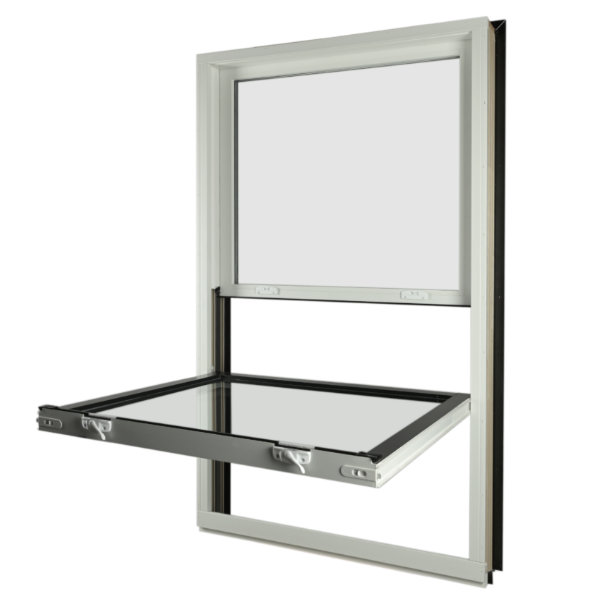

All Sun double-hung windows feature Tilt-In Sashes. This allows access to the exterior surface of the sash from the inside of the home or building. This can be helpful for cleaning or servicing purposes. Once tilted, the sashes can also be easily removed from the window, again for cleaning or servicing purposes or to open up access through the window opening.

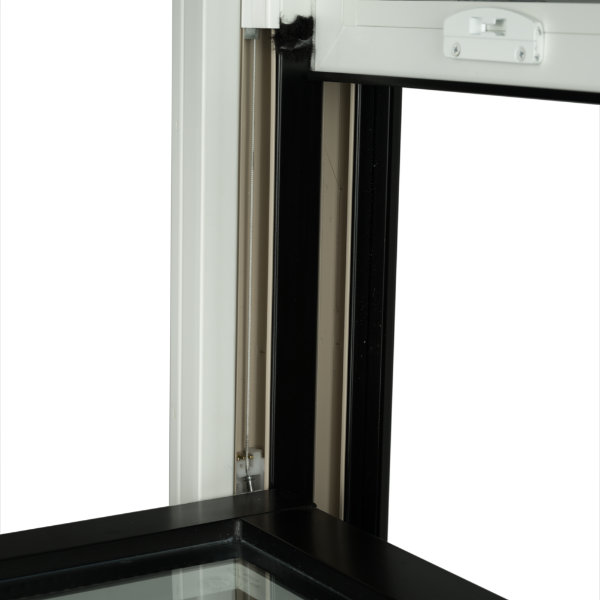

Traditional Block and Tackle Balance System
The Balance System helps to compensate for the weight of the sash to make it easier to raise and lower. It also helps to keep it in position when you reach the amount of opening desired.
The Architectural double hung uses a Traditional Block and Tackle balance system in our standard-sized units and a Hybrid balance system in our Monumental sized units.
Hybrid Balance System for Monumental Sizes
The Balance System helps to compensate for the weight of the sash to make it easier to raise and lower. It also helps to keep it in position when you reach the amount of opening desired.
The Architectural double hung uses a Hybrid balance system in our Monumental sized units. This provides the additional weight bearing required by these larger units.
Locking-When-Tilted Sash Balance Shoes
When the sash is tilted to approximately 90°, the balance shoes tighten against the jamb track to help keep the sash stable in that position. This can help while you hold the sash in place. It will also keep the balance shoes in that position if you remove the sash.
