USA Clad Wood Sliding Door Hardware
Roller & Track
The all-stainless steel tandem roller with ball bearings provides smooth sliding of the operating panel on the guide track. The rollers are adjustable to fine-tune the door panel alignment and operation.
Roller Adjustment Instructions

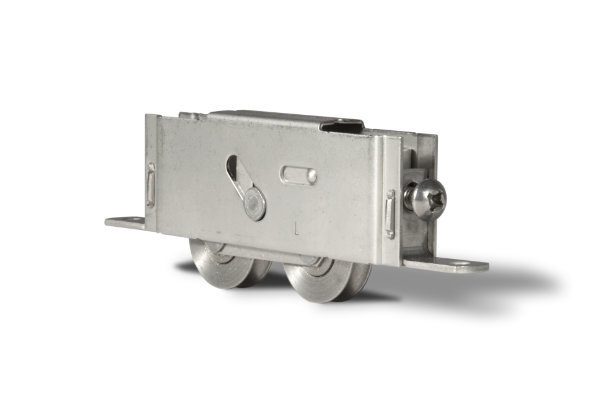

Stainless Steel Adjustable Tandem Roller
Sliding Door Sill with Roller Track
Sill
Sliding doors have a fiberglass pultruded sill with a stainless steel guide track that engages the tandem rollers in the operating panel.
Sill with Roller Track (door open)

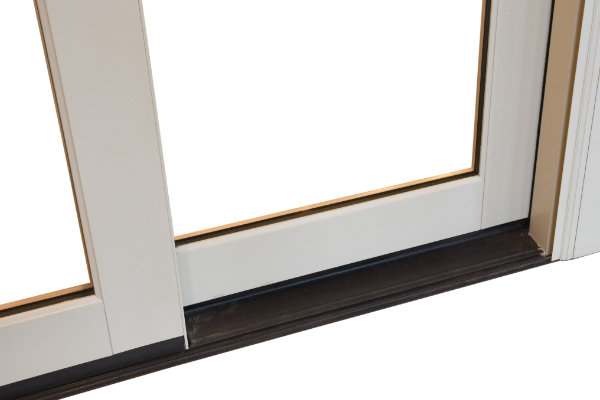

Sill viewed from exterior (door closed)
Handle Sets
Our Dual-Latch Handle Sets are available in two styles: Contemporary and Signature.
On a 2-panel door, the Interior Handle has a latch lever that manually secures the door panel in its closed position. The Exterior Handle is available in two versions. One is a plain handle without a lock. This version cannot be unlocked or unlatched from the exterior. The other version has a keyed cylinder lock that provides access from the outside using a key.
On a 4-panel door, the secondary operating panel (or passive panel) also has a handle set. This handle set has no latching or locking function. Latching is provided by the hardware on the active panel. Therefore, the interior and exterior handles on the secondary panel only provide a handhold and are known as passive handles. This is also sometimes referred to as a dummy handle.
Active Panel Handle Set Options
Images show in order - exterior/interior

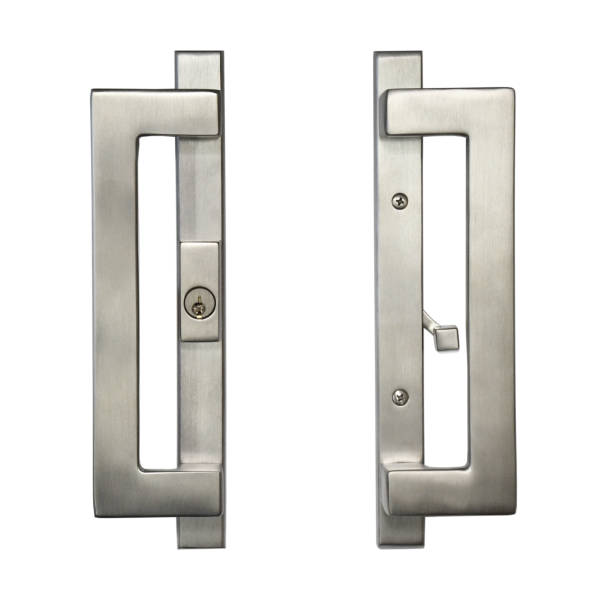

Contemporary with lock
Contemporary - no lock

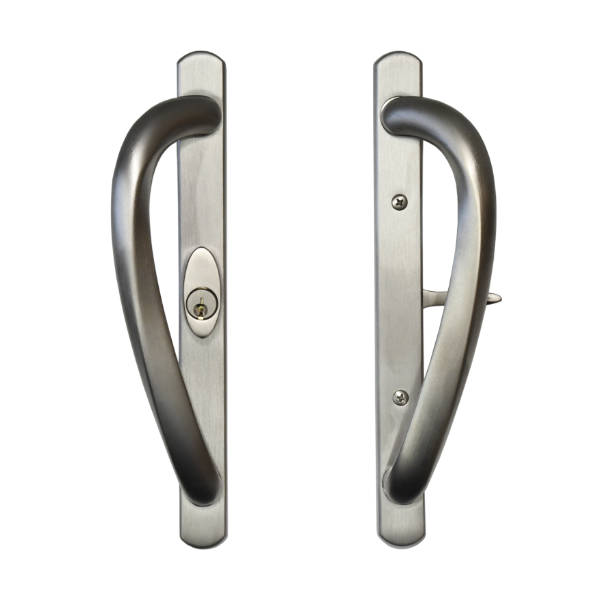

Signature with lock

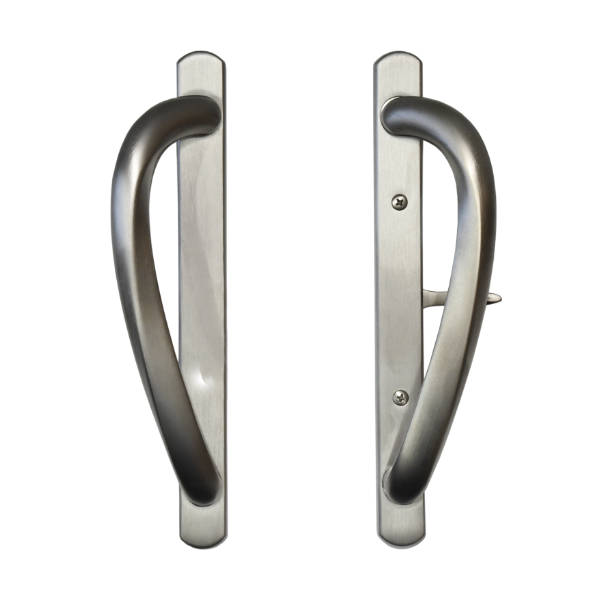

Signature - no lock
Passive Panel Handle Set Options
for 4-Panel Slider passive/secondary panel
Images show in order - exterior/interior
Contemporary - passive set

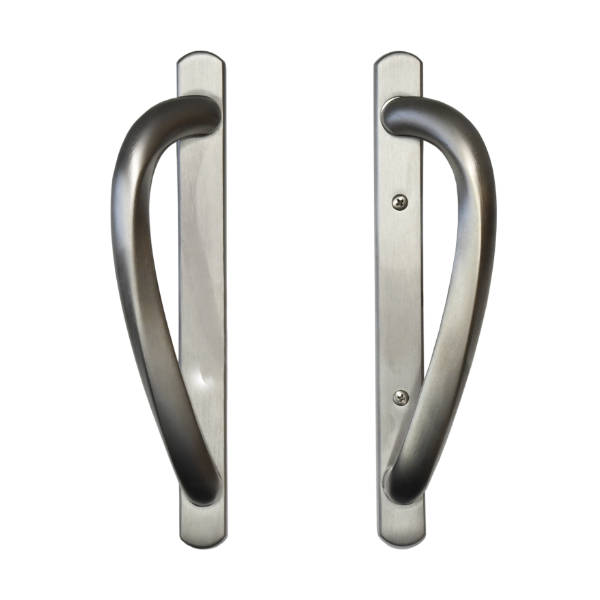

Signature - passive set
Foot Bolt
The Foot Bolt is an optional, secondary lock that installs at the bottom of the operating panel on the interior side. It adds manual locking of the panel in the closed position.
Foot Bolt Instructions

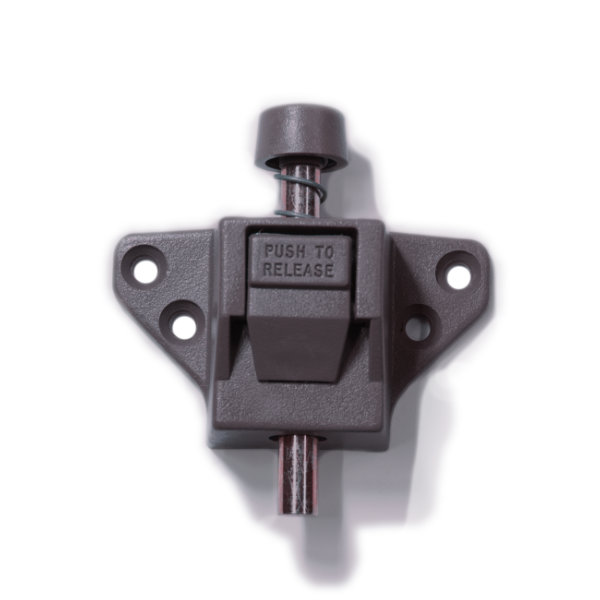

Foot Bolt - Brown

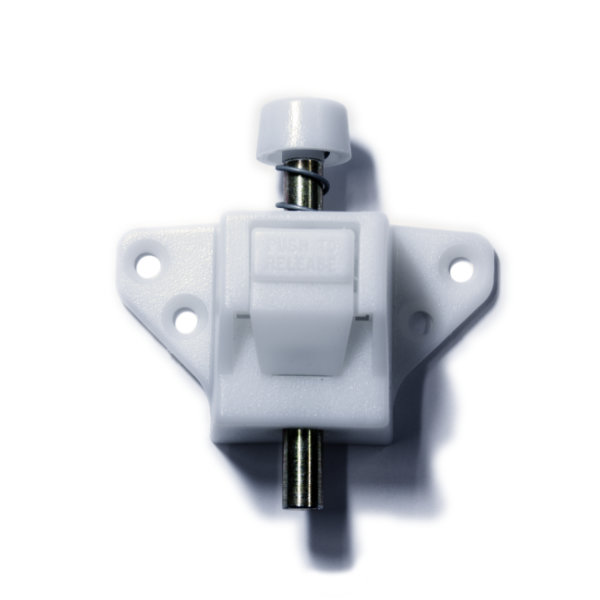

Foot Bolt - White

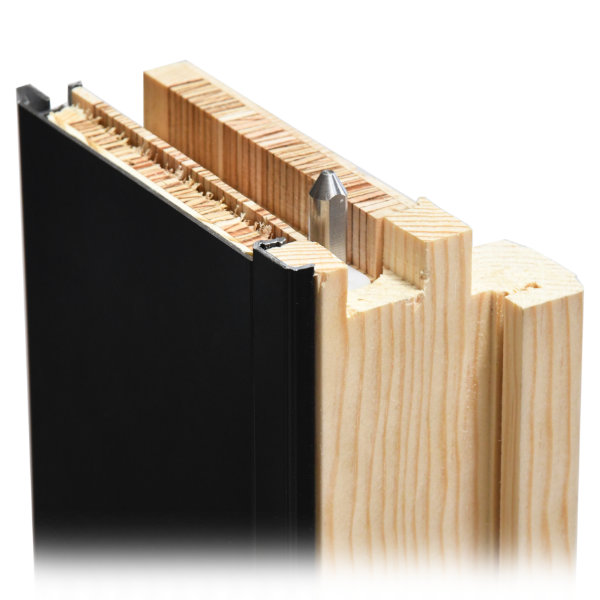

Shootbolt & Pin
On our Quad Slider doors, we include Shootbolts at the head and foot to secure the passive panel. The main operating panel opens and closes as usual. The passive panel can be opened by releasing the shoot bolt levers.
Shootbolt Lever
