USA Clad Wood Arch Top Casement Hardware


Casement Arch Top window sashes open and close using a hand-cranked, gear-driven operator. The operator is located on the sill. The sash can be opened up to 90° perpendicular to the normally closed position.

Casement Arch Top Operator with cover and handle removed
Operator with Cover and Handle Removed

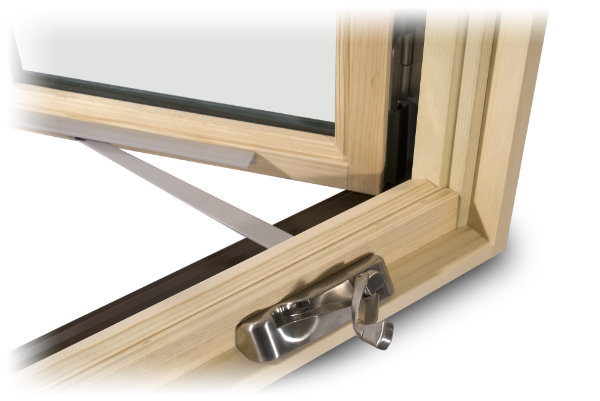

Casement Arch Top Operator with cover and handle installed
Operator with Cover and Handle Installed

Operator Covers & Handles

The operator is completed by a cover and folding handle. These are available in two styles: the standard Contoured or optional Contemporary cover and handle.

See Finishes


Standard Cover and Handle
Standard Contoured
Contemporary Cover and Handle


The Casement Arch Top sash is fastened to the frame using traditional door-style hinges.

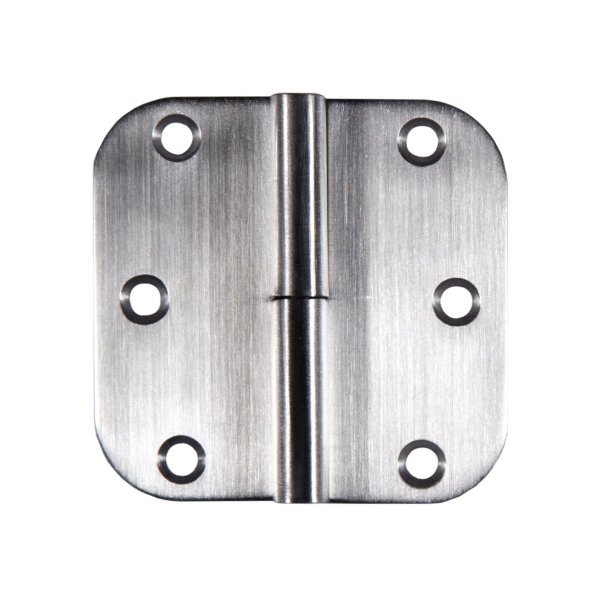

Casement Arch Top Hinge - Stainless Steel
Stainless Steel

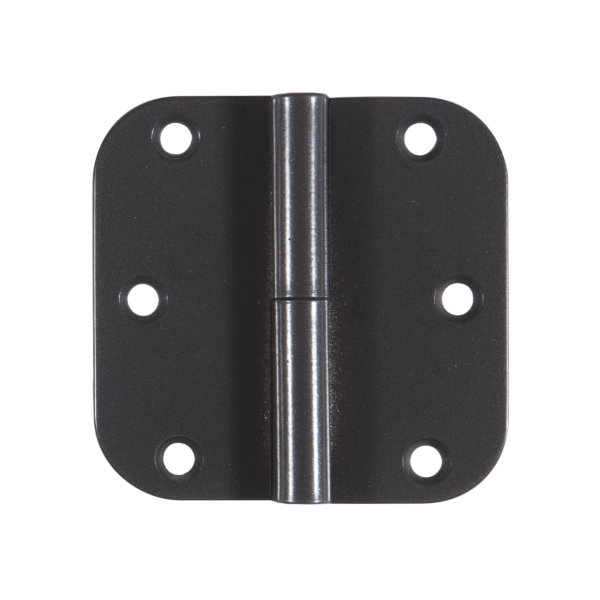

Casement Arch Top Hinge - Chestnut Bronze
Chestnut Bronze

Single Lever Latching System

A single lever handle raises to release the multi-point sash latches. The number of latching points depends on the height of the window.

The lever handle has a cover and trim piece that matches the finish selected for the Operator Cover and Handle.

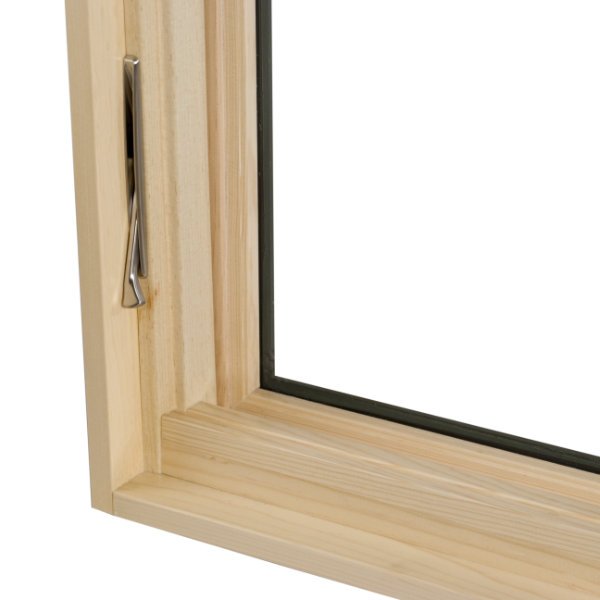

Casement Arch Top Sash Latch Lever
Single Lever Releases Sash Latches

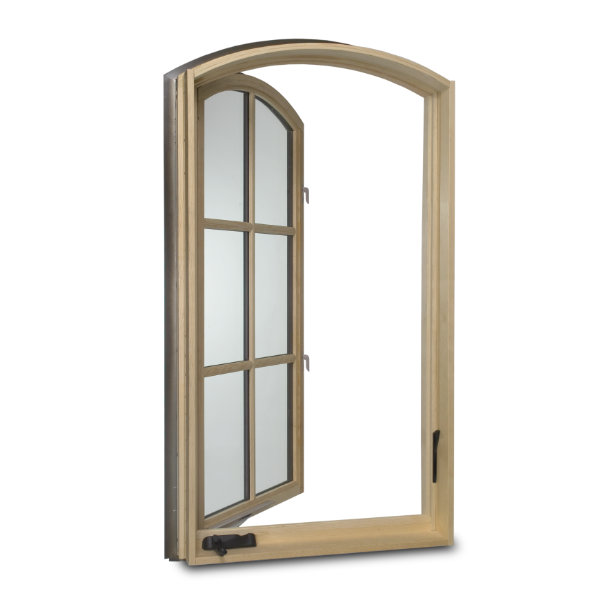

Casement Arch Top Multipoint Latching System
Latching System with Multiple Latching Points
